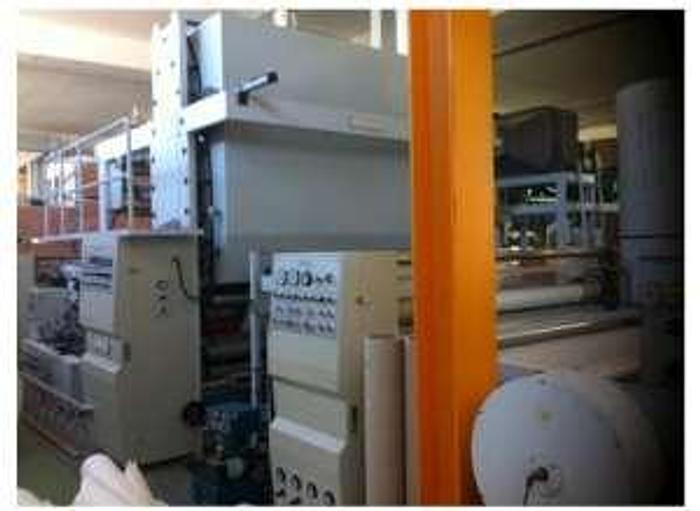

2001 Han Yong Extrusion Laminator

HAN YONG EXTRUSION LAMINATION

Width: 1500mm

Coating/lamination units

Rotogravure primer x 1

Extrusion coating unit x 1

Extrusion lamination unit x 1

Coating/lamination unit 1: Rotogravure coating unit

Drying hoods x 2, 2.5m length

Drying with 2 x oil heaters

Each hood with dedicated heater and blower

Coating/lamination unit 2: Extrusion lamination unit

Volumetric doser

Extruder: 90mm diameter

Extrusion die: 1.6m width with internal deckling for width regulation 500mm on each side, total 1000mm

Chill roller diameter: 700mm

Lamination nip

Coating/lamination unit 3: Extrusion coating unit

Volumetric doser

Extruder diameter:  90mm

Extrusion diameter: 1.6m width with internal deckling for width regulation 500mm on each side, total 1000mm

Chill roller diameter: 700mm

Mero corona treatments x 2

Primary unwind: turret maximum diameter 1000mm

Secondary unwind: double shaft maximum diameter 1000mm

3rd unwind: turret maximum diameter 1000mm

Rewind: turret nonstop

Speed: 200mpm

Materials: paper upto 250gsm, film upto 250micron
