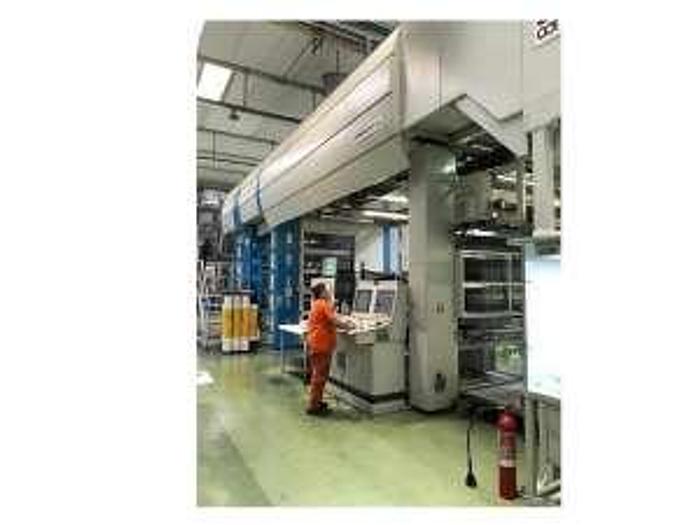

2011 Uteco Diamond HP 108 10 colour CI press

Number of colours: 10

Print possibilities: 10 + 0

Gearless

Fast sleeve change

4 motor per deck CNC position system

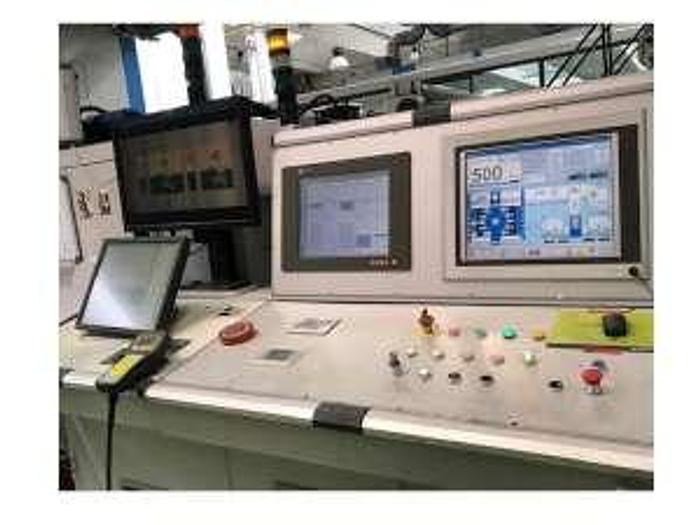

Computer supervision

Web width: 1550mm

Print width: 1500mm

Minimum print repeat: 420mm

Maximum print repeat: 870mm

Unwind: turret automatic

Maximum reel diameter unwind: 1000mm

Rewind: turret automatic

Maximum reel diameter rewind: 1000mm

Drying: 2 zones 4 fans with 6mt final tunnel and thermo oil heat exchangers

Video camera: Grafikontrol with 100% inspection system

Web guides: BST in and out

Viscosity control: automatic

Washing system: automatic

Inking system: closed chamber doctor blades, 10 + 2 spares

Ceramic anilox sleeves: x 16

Print sleeves: 60 + 10 carriers

Printing speed maximum: 600mpm

Carbon fiber mandrels

Automatic printing set up and automatic register control with "click and drag" system by Grafikontrol

Drum cleaning device
