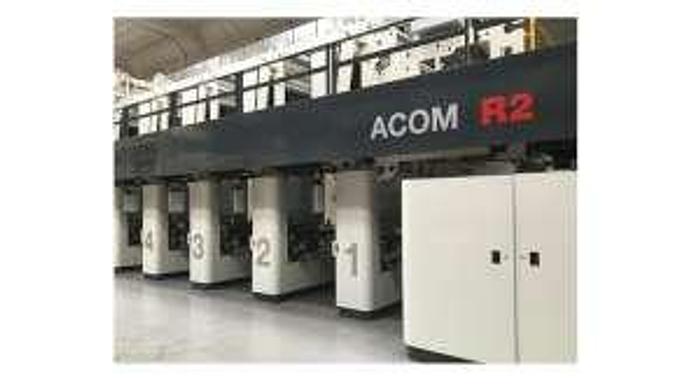

Acom Comexi R2 Rotogravure Machine

Number of colours: 6

Print possibilities: 6 + 0

Drive: electronic shaft

Trolley system

Web width: 1050mm

Print width: 1030mm

Print repeat range: 450-920mm

Drying: units 1-5 single hood 1.8mt, unit 6 double extended hood 2 x 2.2mt

Drying heat source: thermo oil heat exchanger

Unwind: turret automatic

Maximum reel diameter unwind: 1000mm

Rewind: turret automatic

Maximum reel diameter rewind: 1000mm

Video camera: BST Eltromat web video Eltromat 500

Register control: Eltromat with reading heads with possibility to read triangular marks 10 x 6

Viscosity control

Corona treatment: Ahlbrandt

Mechanical speed: 350m/min

Maximum width for print cylinders: 1100mm

Shafts: 2 x 76mm shaft, 4 x 152mm

Electrostatic assistance Enulec on 6 print units + antistatic bars on un and rewind

LEL system make MSA, IR sensors

Option: additional gravure coating unit Acom
