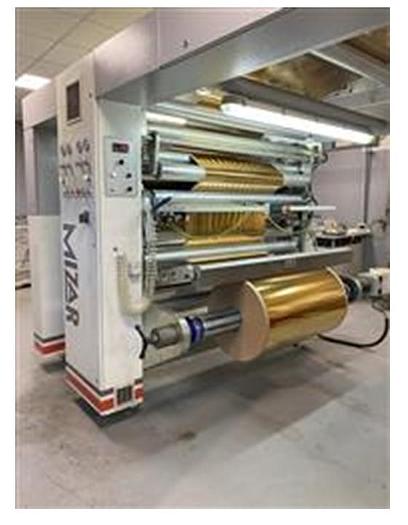

2017 Remak Mizar

REMAK MIZAR SOLVENTLESS DUPLEX LAMINATOR

Working width: 1600mm

Materials: Films, Bopp 12-80my, pet 12-30my, PE 30-200my + others, all foil 7-40 my,

paper and board up to 350gsm

Speed: 350mpm

First unwind: shaftless driven

Maximum diameter reel unwind: 1000mm

Secondary unwind: shaftless driven

Maximum diameter reel unwind: 1000mm

Rewind: shaftless driven

Maximum diameter reel rewind: 1000mm

Coating unit: solventless 5 roll staggered

Pumping mixing unit: equipped with mono component glue unit for film + paper, Remak Monomix

We can offer as optional Dopag 2 component mixing pumping unit, year 2018 for 13,000 Euro

Three heating and temperature control units for coating rollers and lamination nip

Three roller type lamination nip with back up roller

In line slitting system: Helios
