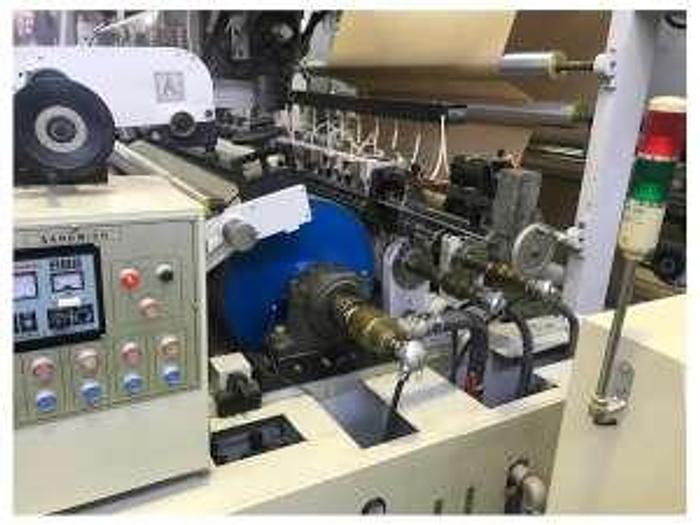

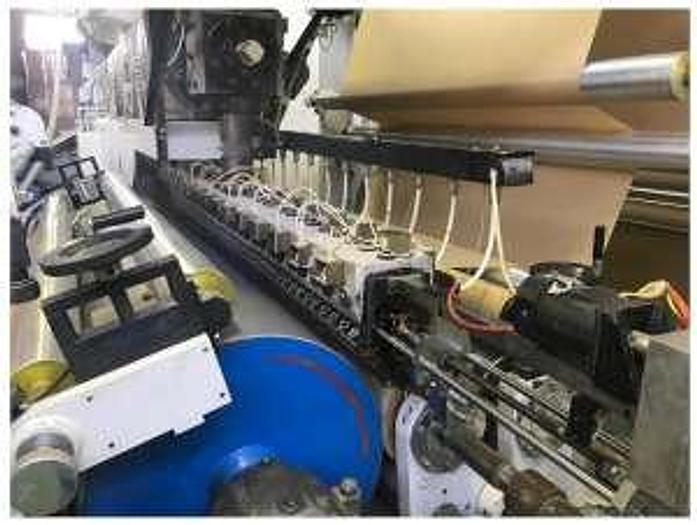

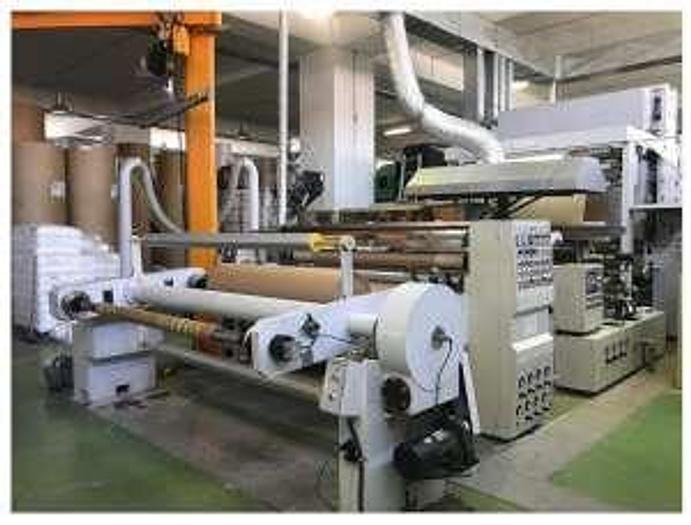

2005 Han Yong Korea Extrusion Laminator

Width: 2200mm

Coating/lamination unit: 1 Rotogravure coating

Drying hoods: x 2, length 2.5m

Drying with 2 x oil heaters

Each hood with dedicated heater and blower

Coating/lamination unit 2: Extrusion lamination

Volumetric doser

Extruder: 90mm diameter

Extrusion die: 2.2m width with internal deckling for width regulation 500mm on each side, total 1000mm

Chill roller: 700mm diameter

Lamination nip

Corona treater: x 2

Primary unwind: turret automatic, diameter minimum/maximum 1000mm

Secondary unwind: single position for Alu foil, diameter minimum/maximum 1000mm

Rewind: turret automatic, diameter minimum/maximum 1000mm

Speed: 200

Single 2200 with extruder and 2 coronas

Can coat: EVA, minimum and maximum micron, coating 7gsm to 25gsm

Paper upto: 150gsm, upto 250mic

Electrical: 3p, 400v +/-10%, 50hz, 385kw
