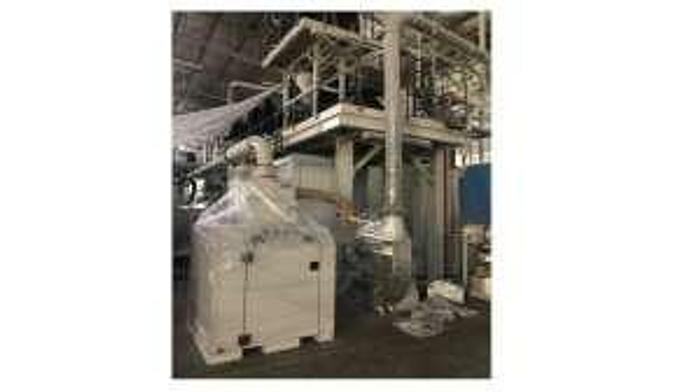

2016 SML Cast Extrusion Film line
2016 SML Cast Extrusion Film line
Available quantity: 1
Description
Number of layers: 5
Film structure: B, A, C
Material: stretch film, LLDPE, thickness 8-45my
Film width: 1500mm
Speed: 650m/min
Output: approximately 890kg/h, depending on thicknesses and raw materials
Extruder 1 ref: A
Screw diameter: 90mm 33L/D
Description: 800kg/h synchro gravimetric blenders
Extruder 2 ref: B
Screw diameter: 60mm 28L/D
Description: 190kg/h synchro gravimetric blenders
Extruder 3 ref: C
Screw diameter: 60mm 28L/D
Description: 190kg/h synchro gravimetric blenders
Head description: Cloren automatic thickness profile control
Die width: 2000mm
Chill roll unit: diameter 1200mm, width 2100mm
Thickness control system: electronic
Web guide: Oscillating frame
Rewind: for hand, machine and jumbo reels, possible on 2" cores for hand reels and 3" cores for machine and jumbo reels
Reel width: 3 x 500mm, 2 x 750mm
Specifications
| Manufacturer | SML |
| Model | Cast Extrusion Film Line |
| Year | 2016 |
| Condition | Used |
| Stock Number | 57368 |
| Match code | I01 |
