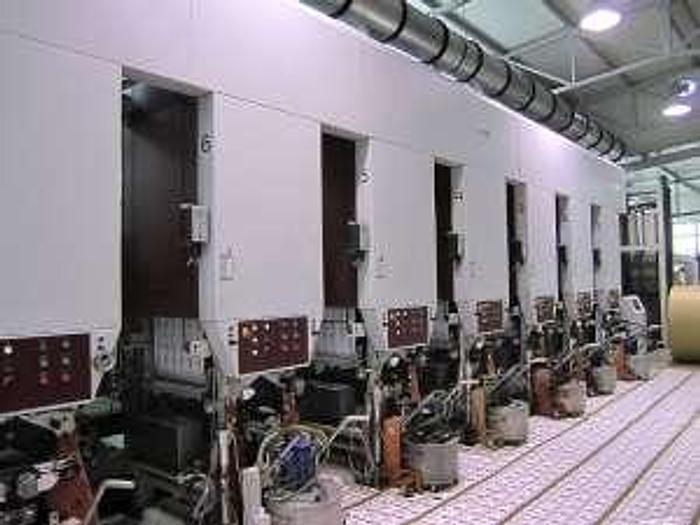

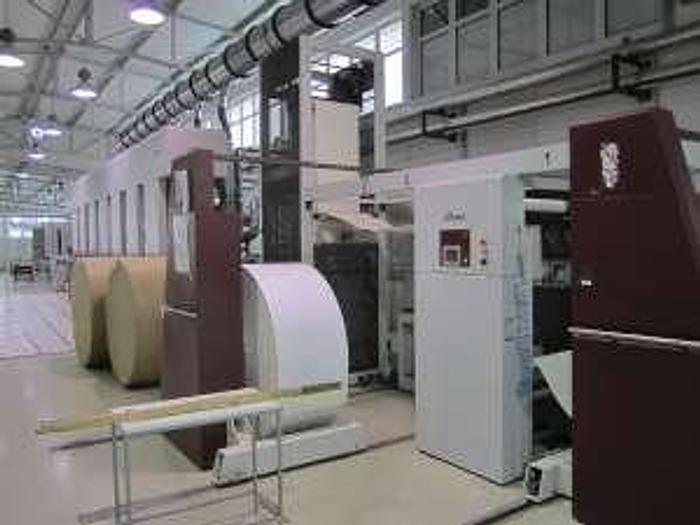

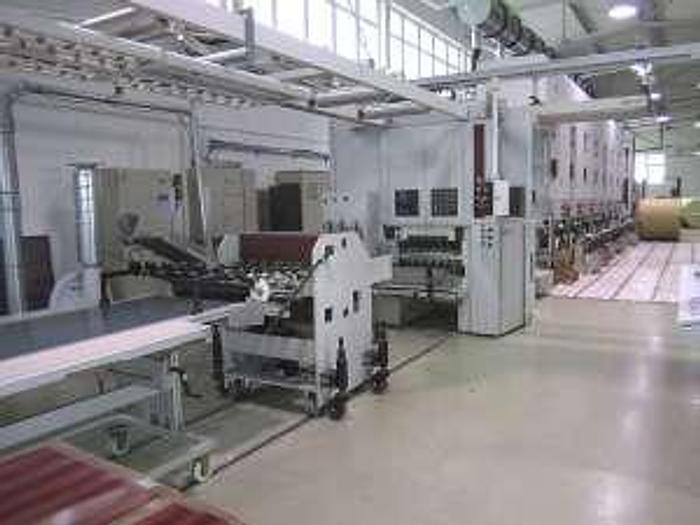

DCM Atena 7 Colour Gravure Press 660mm

Line shaft press

Machine designed for: production of cigarettes packaging, paper labels and cardboard packaging

Number of impressions: 12.136.991 m

Number of printing units: 7

Substrate: paper/cardboard

Substrate weight: 60-300gsm

Maximum reel diameter: 1800mm

Maximum web width: 660mm

Maximum printing width: 640mm

Maximum printing repeat: 760mm

Minimum printing repeat: 360mm

Maximum rotary die cutting width: 660mm

Maximum rotary die cutting repeat: 800mm

Minimum rotary die cutting repeat: 535mm

Air volume: 7000m3/h

Air velocity: 40m/s

Register accuracy

Print to print: +/- 0.10mm

Print to cut: +/- 0.15mm

Electrical specifications: 400v, 3 phases, 50 hz

Production speed: up to 200 m/min

Automatic splicing festoon unwind, allows web splicing upto 200m/min

Web cleaning unit with anti static bars

Web guiding

Turn bar

BST Handyscan video

Rotary decurler

Sleeve impression rolls

3 stage rotary die cutting unit rdc10 in line: embossing, creasing and cutting/stripping cassettes

Production: roll to sheet, roll to die cut product

Servo sheeting cassette with high pile receptacle

Drying: thermo oil installation with high efficiency dryers

Register control: DGC 650 from Eltromat
