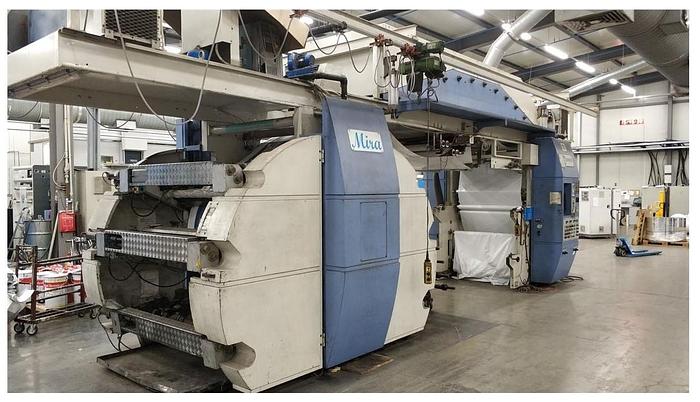

2002 Bonardi Mira 1200

BONARDI MIRA 1200CI FLEXO PRESS

Number of colours: 6

Fast sleeve change

Web width: 1250mm

Print width: 1200mm

Minimum print repeat: 350mm

Maximum print repeat: 800mm

Unwind: double unwind with automatic control tension

Maximum reel diameter unwind: 700mm

Rewind: double

Maximum reel diameter rewind: 750mm

Drying: electrical

Video camera

Web guides

Inking: flexo inks solvent based and water

Anilox: 10 ceramic coated and laser engraved aniloxes 260,100, 140l/cm

Print sleeves: 5 sets, 350, 400, 450, 550, 600

Plate cylinder gear pitch module: 5mm

Plate thickness, sticky back included: 1.64mm

Sleeve changeover central impression press

Helical gears pitch: 5mm

Side register capability: +/-10mm

Up down register capability: +/-7mm

Mechanical speed: 250m/min

Web tension range: 30-250n

Flexo inks solvent based and water

Pneumatic pumps: x 6

Printing plate thickness: 1.14mm

Sticky back adhesive thickness: 0.50mm

Chill roller with overall diameter: 290mm

Double unwind with automatic control tension

Electromagnetic powder brakes

Pneumatic loaded dancer with two low inertia air cylinders

Air expandable shafts: x 2

Reel maximum diameter: 700mm

Core diameter: 3”

Double rewinder

CA motors: x 2

Pneumatic loaded dancer with two low inertia air cylinders

Micro switch to stop the press in case the web breaks or reel end

Marriage roll pneumatic operated to enable to splice to be carried out at reducer speed with operator intervention

Printing mandrels: 2 sets of 6

Banana roller: 1 at the infeed before nip on top of the central drum, 1 at the infeed before rewinder
