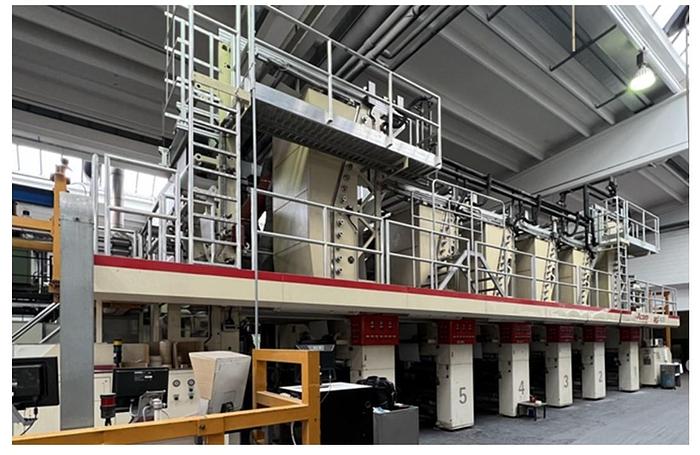

2014 Acom RG Excel Rotogravure Machine

ACOM RG EXCEL ROTOGRAVURE PRESS

Number of colours: 6

Drive: electronic shaft

Trolley system

Web width: 850mm

Print width: 800mm

Print repeat range: 500-800mm

Drying: 4 units 2 to 5

Single drying hood: 2.2mt length

Blowing fan

Gas burner

Chill rollers: x 2 units 1 and 6

Extended drying hood: 3, 5mt length

Gas burners: x 2

Chill rollers: x 3, each unit with independent air recirculation system

Drying heat: gas burners

Unwind: turret automatic

Maximum reel diameter unwind: 1000mm

Rewind: turret automatic

Maximum reel diameter rewind: 1000mm

Register control: Eltromat DGC700

Materials: PET 12-40 microns, BOPP 15-50 microns, Paper 40- 140gsm

Only water based inks infeed

Driven section

Outfeed driven nip section

Web guides infeed and outfeed OPG
