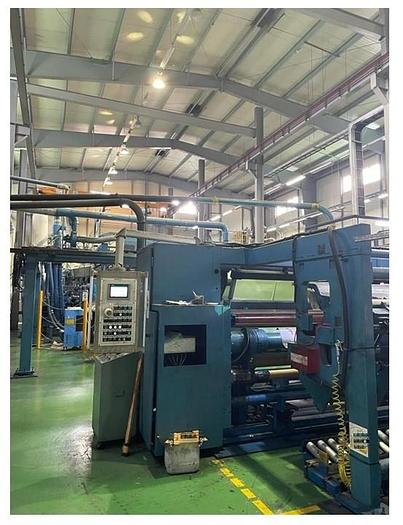

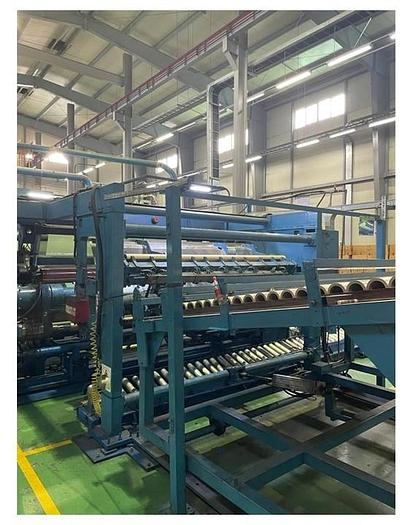

2002 Altek Provera ADT EX Cast Film Line

ALTEK PROVERA ADT EX CAST FILM EXTRUSION LINE

Number of layers: 5

Film structure: ABCDA

Material: stretch film LLDPE

Film width: 2500mm

Speed: 600m/min, regular production 480m/min

Output: 1200/1300kg/h

Extruder 1 layer: A

Screw diameter 1: 160mm

Description 1: motor 352kw

Extruder 2 layer: B

Screw diameter 2: 120mm

Description 2: motor 247kw

Extruder 3 layer: C

Screw diameter 3: 160mm

Extruder 4 layer: D

Screw diameter 4: 80mm

Extruder 5 layer: A

Screw diameter 5: 160mm

Description 5: motor 352kw

Head: 4 layer feed block automatic die

Chill roll unit: 1000mm diameter

Thickness control: Xray Soter

Web guide: E& L

Rewind maximum reel diameter: 500mm

Rewind reels: jumbo and reels for wrapping machine

Turret with variable distance between shafts

Machine and jumbo rolls of industrial stretch wrapping film

Line equipped of robot for roll palletizing

Electronic system xray

Dosing unit

Thickness: 9-50my stretch film, depending on raw material blend and specifications
