2013 Wordly WRP AS1200 8C

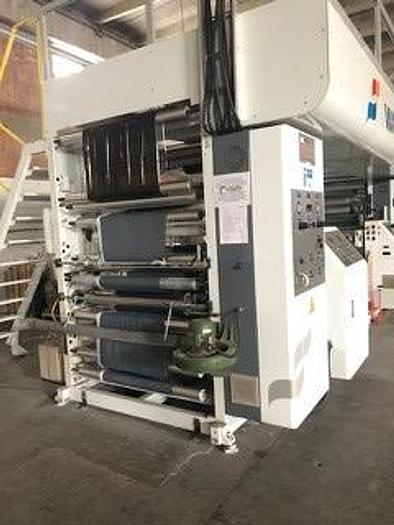

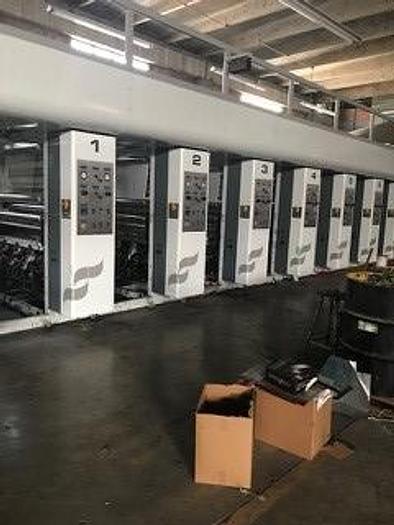

WORDLY WRP AS1200 8C ROTOGRAVURE 8 COLOUR PRINTING MACHINE WITH SINGLE OPERATION

Maximum printing width: 1200mm

Printing cylinder circumference: 400-1000mm

Printing cylinder width: 950mm-1250mm

Machine speed: 200m/min

Printing speed: 180m/min, depend on printing relevant condition, such as material and printing thickness

Maximum unwind diameter: 600mm

Maximum rewind diameter: 600mm

Paper core diameter: ID 76mm x OD 95-100mm

Aluminum guide roller in drying oven: 90mm x 1300mm

Aluminium guide roller outside of the machine: 90mm x 1300mm

Unwind/rewind maximum tension: 20kg/cm2

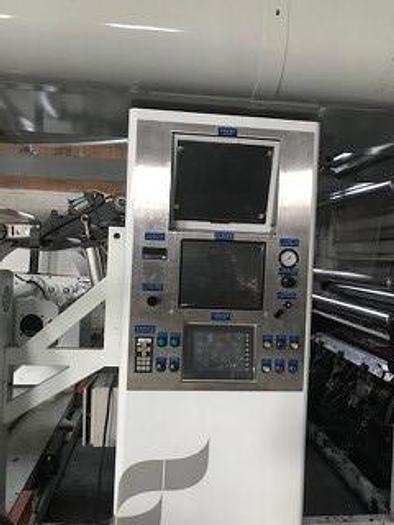

Control system: PLC

Power changing range within + 10v: 3p, 220v, 60hz

Environment temperature for installation: 150c-350c

Environment for installation: clean air without dust

Cooling water consumption required: approximately 5ton/hr

Print material: OPP 20u-40u, PET 12u-30u, PE 25u-40u, CPP 30u-60u, PVC 35u-50u, Nylon 15u-30u
