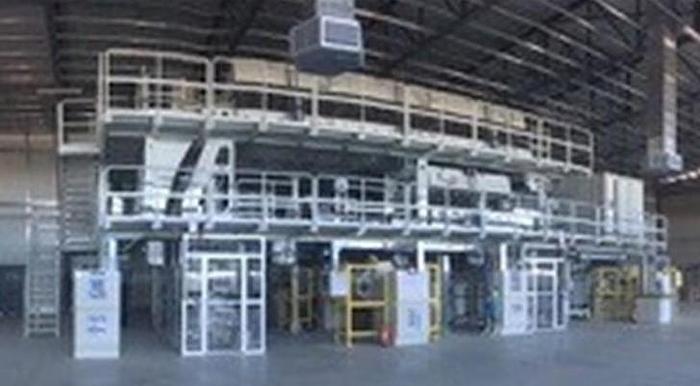

2017 SAM Laminator Coater Converting Machine

Application: Lamination + coating

Lamination/coating: solvent/water based

Working width: 1250mm

Materials: Film, Paper, AL foil from 12 microns

First unwind: turret automatic

Maximum diameter reel unwind: 1000mm

Second unwind: turret automatic

Rewind: turret automatic

Maximum diameter reel rewind: 1000mm

Coating: gravure coating unit sleeves with trolley

Second coating: gravure with gravure trolley and semi flexo trolley, trollies are interchangeable with station 1

Drying: 1st coating unit, 2 zone drying section

Total air inlet 7000nmc/h1

Vertical dryer 1.8m maximum temperature 1200c and following horizontal dryer 3meter

Maximum temperature 150°c

Total installed power 300.000Kcal/h

2nd coating unit 4 zones drying section

Total air inlet 18.000nNmc/h

Vertical dryer 3.0m maximum 1200c and following 3 horizontal dryers of 3meters each

Maximum temperature 150-200-1500c

Total installed power 800.000kcal/h

Automatic LEL control for driers

Automatic viscosity control

Chillers

CO2 fire extinguisher complete on the machine

Full ventilation system with thermal oil heat exchangers

Antistatic bars
