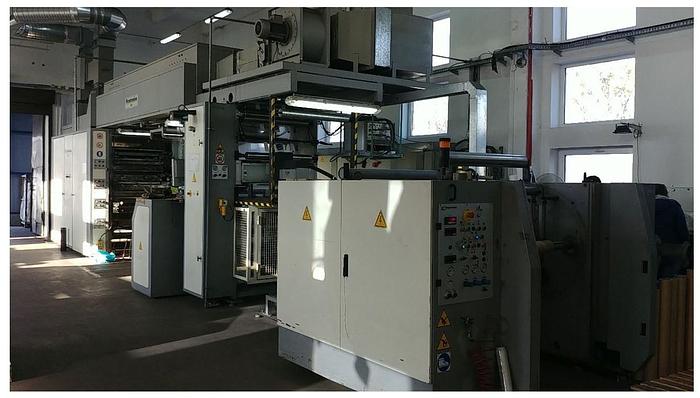

2003 Flexotecnica Tachy CI Flexo Press

FLEXOTECNICA TACHYS CI FLEXO PRESS

Number of colours: 8

Print possibilities: 8 + 0

Fast sleeve change

4 motor per deck CNC position system

Computer supervision

Web width: 950mm

Print width: 900mm

Minimum print repeat: 280mm

Maximum print repeat: 650mm

Unwind: double bracket unwind with dancing roller tension control

Maximum reel diameter unwind: 800mm

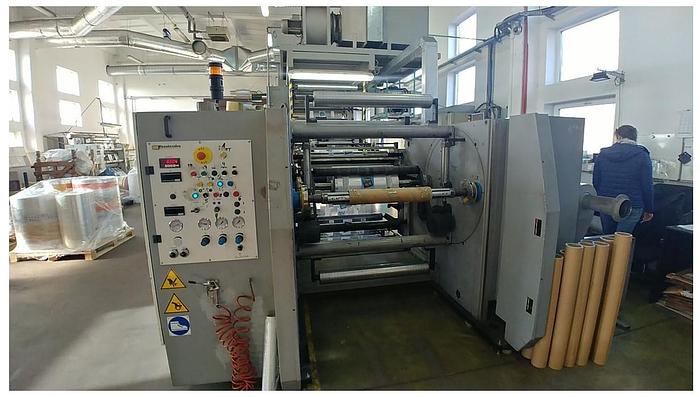

Rewind: turret automatic

Maximum reel diameter rewind: 800mm

Drying: 2 zones, 4 fans, final tunnel, electric heaters

Video camera: 3 chip system with additional inspection unit

Corona treatment

Web guides: BST guide before drum, BST guide before rewind

Closed doctor blade chambers

Electric ink pumps

Banana roll

Chill roller

3 zones of tension control

Slitting unit drum temperature controller

Gear: 10mm

Step speed: 250m/m, depending on a product

Dimensions: length 14480mm x height 4820mm total width around 5500mm

+ Anilox

+ Print sleeves
