2018 Plasco Bausano + ESDE + Kampf MD75 Medica

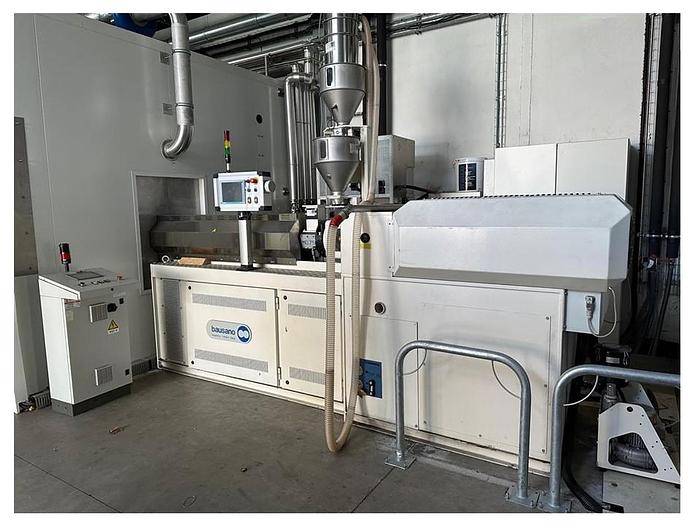

PLASCO BAUSANO ESDE KAMPF MD75 MEDICA POLISHING AND CALENDER FILM EXTRUSION LINE

Number of layers: 1

Material: PVC EVA medical film stainless steel frame, could be used for non medical films

Sheet width: 600mm

Head: Farcon, manual flexible top lip gap adjustment

Film thickness: 200-500my

Maximum output: 200kg/h

Heating zones: x 7

Die width: x 2 flat dies, width 700mm, maximum film 600mm and width 550mm, maximum film 450mm

Polishing stack/calender lines: ESDE

3 rolls stacked, separated drives

Pneumatic cylinders: x 2

Polishing roll diameter: 250mm

Calander roll diameter: 350mm

Cooling roll diameter: 350mm

Roll width: 800mm

Engraved polishing rolls: x 2

One polished hard chromed + 2 engraved

Available calander and cooling rolls

Speed: 2-20m/mm

Oil: maximum 180c roll tempering

Water roll cooling

Nip roll not cooled take off unit

Maximum material width: 700mm

Film thickness: 200-1000my

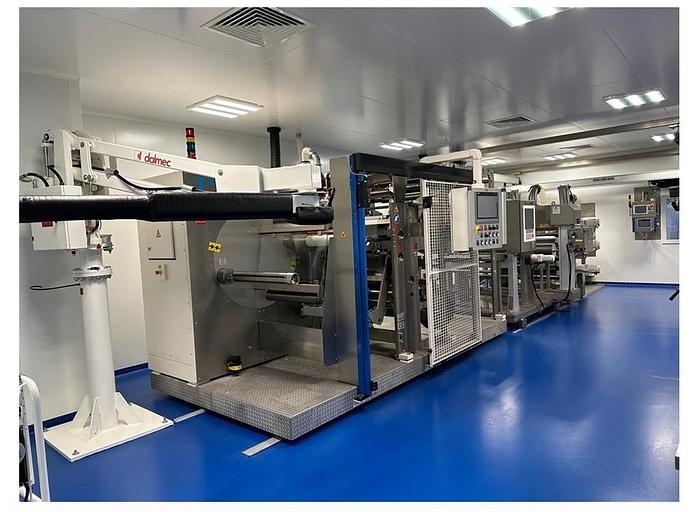

Rewind: Kampf turret winder cantilevered design with 2 winding stations

Maximum winding diameter: 500mm

Maximum net production width: 600mm

Internal core diameter: 105

Knives: x 3, 2 webs 2 trims slitting

Edge trim winders: x 2

Maximum speed: 50m/min

Tension: 20-60n/m

Pneumatic pressure roll

Taper tension and pressure

Maximum final film width: 600mm, die 700mm

Film thickness range: 200 to 500µm

Dosing: Plasco GLV80CV

Gravimetric technology

Maximum output: 250kg/h

Thickness measurement: Mahlo Qualiscan QMS12 with laser detection on traveling and working width 650mm

OCS FSP600 film inspection device

High speed camera with working width: 650mm

Web cleaning Gema Hildebrand Xstream 8.8-P + ION stream with dust suction +

electrostatic neutralizing

Working width: 650mm, 2 sides

Air flow: 636m3/h

Cartridge: 28m2/ blower, 5.5kw filtering system

Output voltage: 6kw ionizing

Finished roll handling: Dalmec partner Eco Pec with pneumatic self balanced arm

Maximum handled weight: 150kg

Gripping toll with rotation horizontal to vertical and expansion mandrel 105mm
