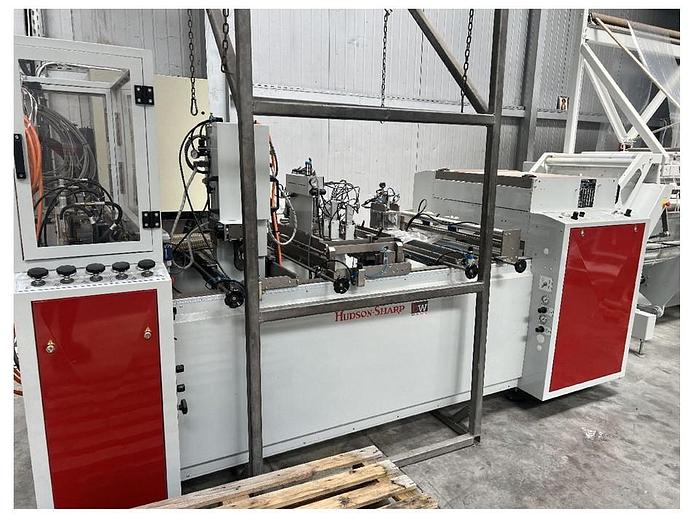

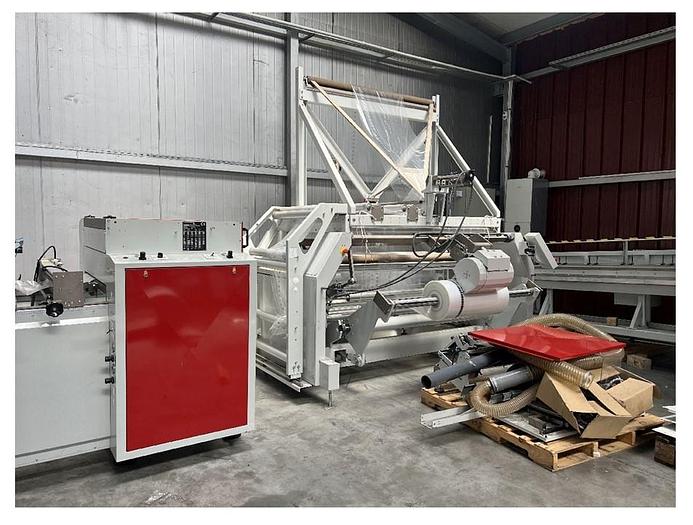

2019 Hudson Sharp 5750W Film Bag Line

HUDSON SHARP 5750W FILM BAG LINE

Delivery: wicketer

Working width: 1600mm

Bag length: 150-710mm

Bag width: 110-390mm

Cycle/min: 450cpm

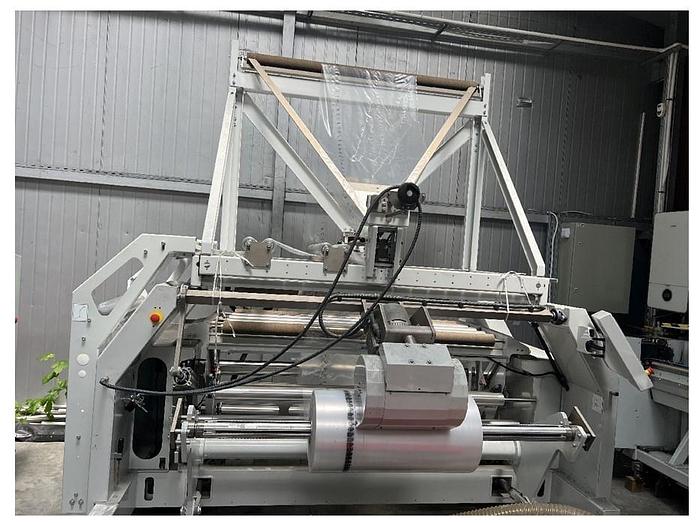

Unwind: surface driven single roll reel lift

Unwind: 1600mm

Maximum weight: 645kg, at 1000mm reel width

Compact folding triangle: 1600mm with motorized folding board positioning and automatic positioning of folding triangle

Edge guiding system: 1.600mm

Longitudinal rotary perforator on the lip

Servo driven main drive motor reducer, AC servo

Easy threading infeed with 4m dancer capacity

Servo top and bottom driven air loaded draw rolls AC servo

Side weld straight seal bar head, complete with seal roll, heat shielded, radius 0.020

Different materials or gauges an extra seal head might be required, not included in present scope of supply

Servo driven indexing seal roll

Servo driven seal head motion for constant seal time

Speed independent with easy access of seal drive mechanism

Static eliminators on both sides of the film before draw rolls

Vacuum pick off with 2 x 8 wicket arms

Pressure blow off

Two level static loader on lip and the gusset of the bag

Servo driven square bottom sealer

Conversion kit for square bottom sealer into a round bottom sealer
