2006 Atlas TDW

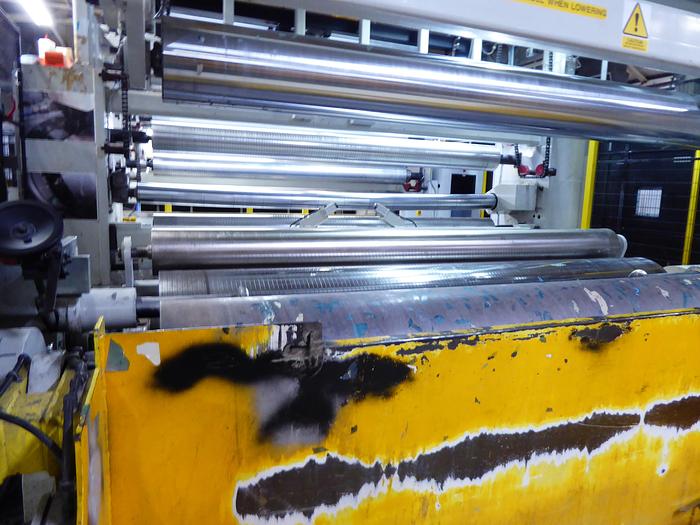

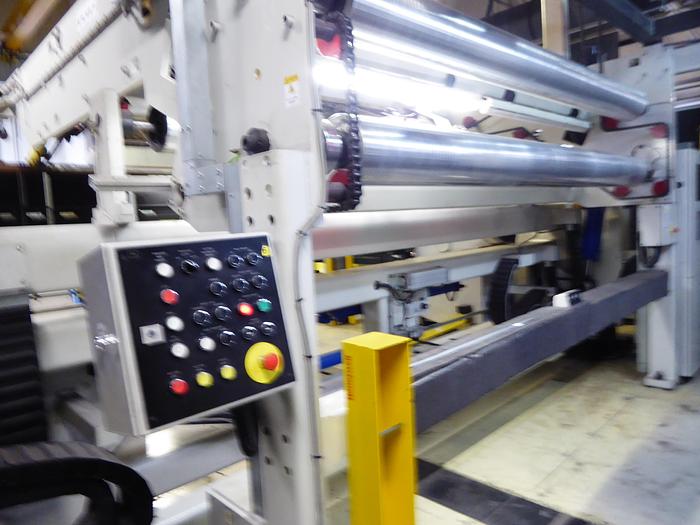

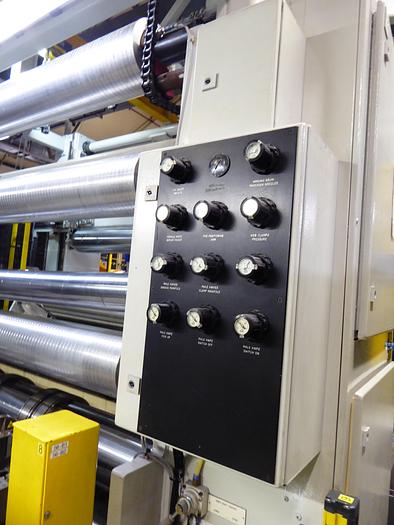

Atlas TDW slitter/rewinder

Designed to slit paper grades between 80-200 GSM

Tension 8 PLI, with the speed of 1500m/min

Unwind maximum roll diameter 1500mm

Max width 2800mm

Rewind maximum roll diameter 1830mm

Normal running speed is 1000rpm

Can slit up to seven webs across

Hydraulic pressure 155 bar, pneumatic pressure 6 bar

Rated to 415v, 315amps

PLC Controls Siemens S7
