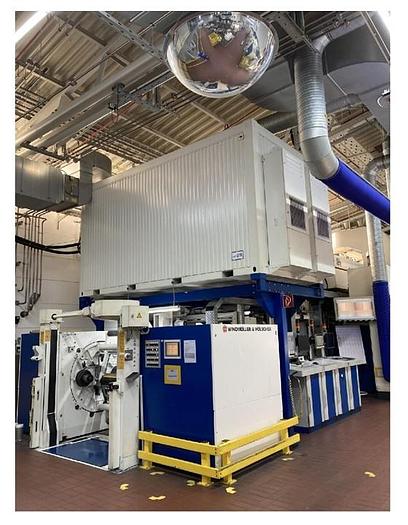

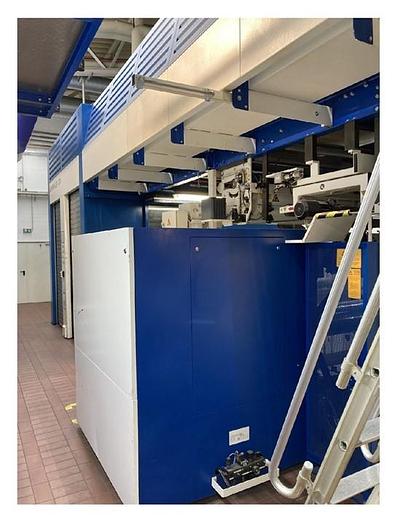

2012 Windmoller & Holscher Miraflex CI Flexo Printing Line

We are pleased to offer for sale the following used flexographic printing machine.

WINDMOLLER & HOLSCHER MIRAFLEX CI USED FLEXO PRINTING MACHINE

Number of colours: 8

Gearless

Fast sleeve change

4 motor per deck CNC position system

Computer supervision

Web width: 1320mm

Print width: 1270mm

Minimum print repeat: 370mm

Maximum print repeat: 800mm

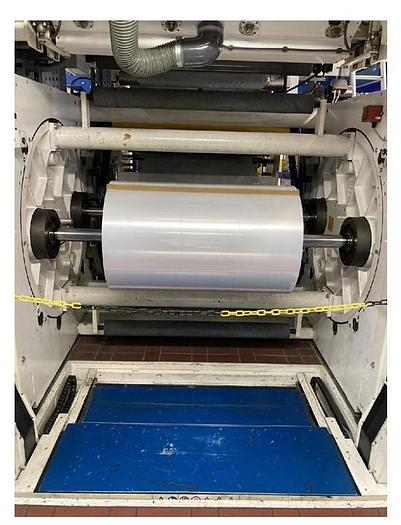

Unwind: shaftless, turret automatic with roll lift unloading system

Maximum reel diameter unwind: 1000mm

Rewind: shaftless, turret automatic with roll lift unloading system

Maximum reel diameter rewind: 1000mm

Drying: 2 zones, 4 fans, final 4mt tunnel, thermo oil heaters

Video camera: BST

Corona treatment: AFS pretreatment unit 38 to 44mn/m dyn

Web guides: in and out

Viscosity control: automatic Bloss

Washing system: automatic Turboclean 8

Speed: 500m/min

Easy set printing system

Print monitoring device

Mirror drum: for visual monitoring of the print image and quality of running materials

Stainless steel ink tanks: x 16, 15 litres

Core diameter: 70/76mm

Web tension range: 25-350n

+ Ceramic anilox sleeves

+ Closed chamber doctor blades
