1994 W&H Paper Sack Line

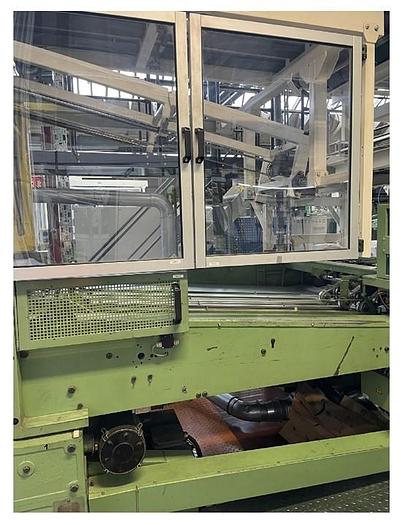

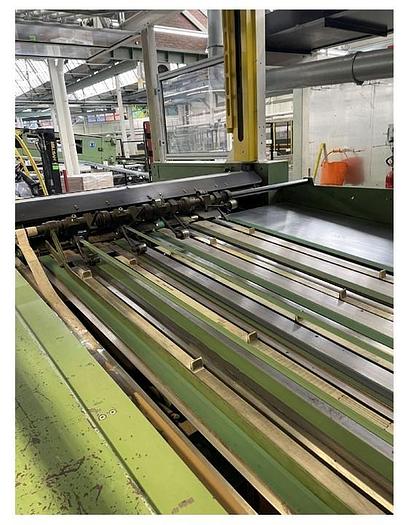

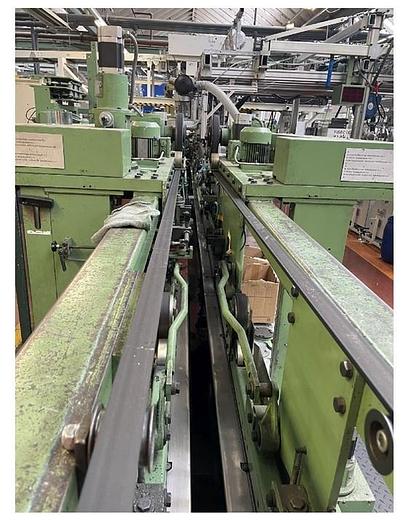

WINDMOLLER & HOLSCHER AD2366NC PAPER SACK COMPLETE LINE

Sack dimensions: bag length 310-1160mm, bag width 280-550mm

Bag width stepped end: 70-160mm

Bag width flush cut: 70-160mm

Width of open bottom: 180-400mm

Bottom center distance: 240-1000mm

Tube length: minimum bottom width 420-1200mm, maximum bottom width 620-1400mm

Valve cut off length: 100-290mm

Paper roll width: 100-360mm

Hinge valve cut off length: 100-290mm

Paper roll width: 100-360mm

Bottom parch cut off length: 180-520mm

Paper roll width: 65-180mm

Output: 250 sacks/min
