2006 General Vacuum Equipment Converting, Metalliizer Line

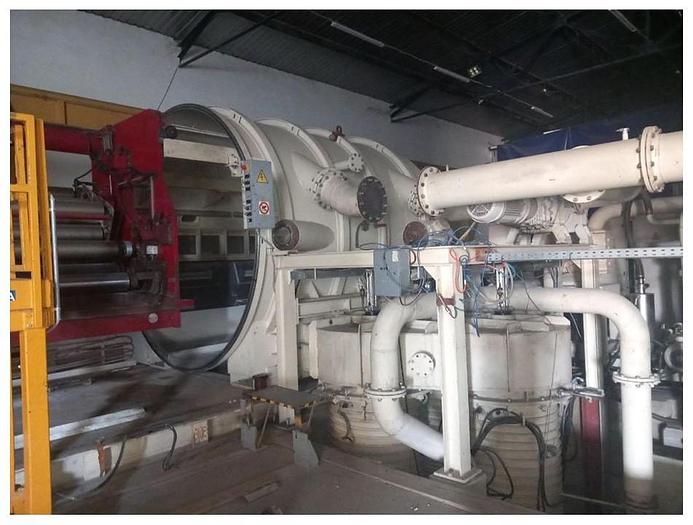

GENERAL VACUUM EQUIPMENT K5000 CONVERTING METALLIZER LINE

Working width: 2400mm

Materials: Bopp, Bopet, CPP

Speed: 840m/min

Maximum diameter reel unwind: 1200mm

Maximum diameter reel rewind: 1200mm

Evaporation boots: deposited material ALU, size 120 x 35 x 10mm

Pumping down time: to 5 x 1 0-4mbar less than 7minutes

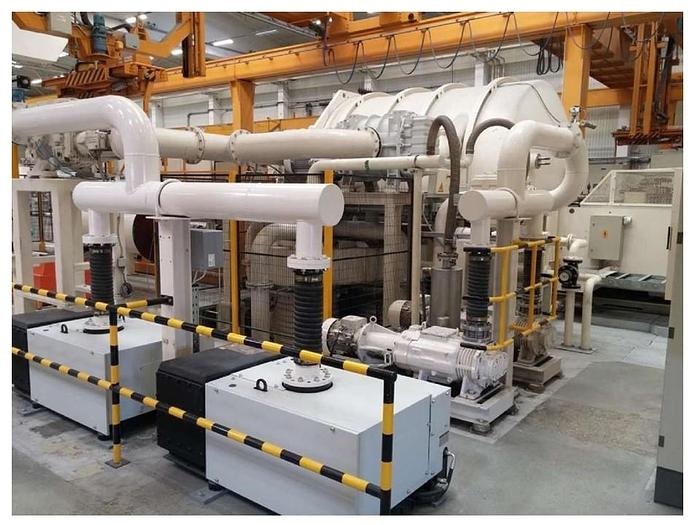

Pumping system: new Sogevac pumps

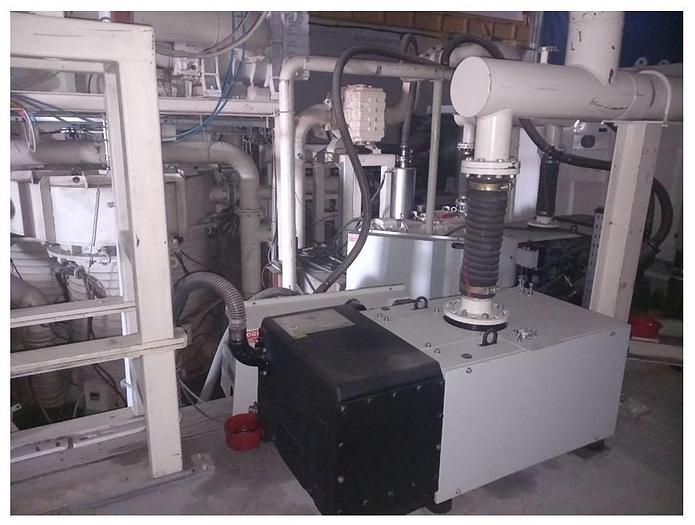

Rotary piston pump: 505m3/h

Roots pump: 13000 m3/h

Roots pump: 2400 m3/h

Diffusion pumps: x 3, 50000 1/sec

Roots pump: 5500m3/h

Rotary piston pumps: x 2, 505m3/h

Cryogenic panel: 200.000 1/sec

Plasma treatment

Polycold: x 3

Maximum diameter reel unwind: 1000mm

Maximum diameter reel rewind: 1000mm

PET 6-60my, OPP 12-100my, PVC20-80my, HDPE20-100my, CPP20-80my

Machine is also able to metallize: LDPE, PA, Cellophane

Dimensions including electrical cabinet: width 9m x length with opened carriages x 19.5m, height 3.6m

Approximate weight: 55t
