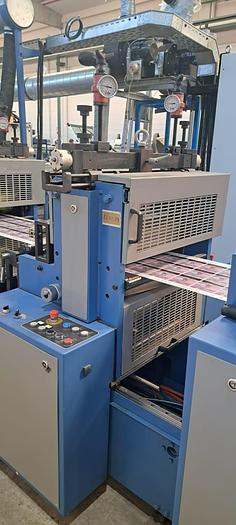

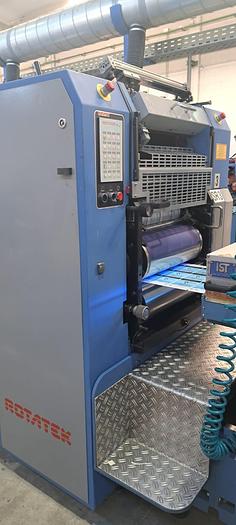

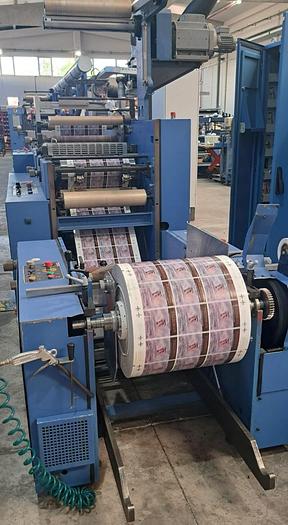

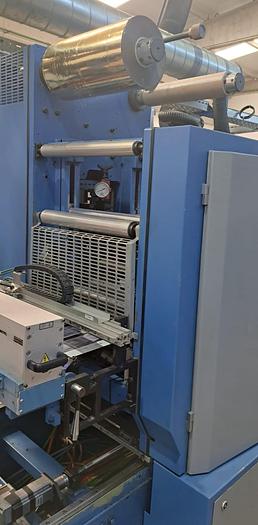

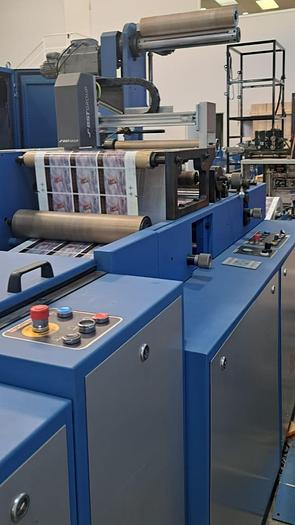

2010 Rotatek Brava 450

ROTATEK BRAVA 450 is the only press on the market which allows you to print both in semi-rotary and rotary systems, combining finishing systems to perform all processes in-line and in a single operation. The semi-rotary system allows you to change format (feed) without using any tools or change the cylinder. It is ideal for medium and short print runs.

Its print width (420mm) and high speed, both in semi-rotary (12,000 cycles/hour) and rotary modes (150 cycles/min), make Brava 450 the most efficient and productive press on the market.

Its wet Offset printing technology and maximum accuracy guarantee the highest quality.

Substrate width: 450 mm

Print width: 150mm - 420mm

Speed: 80 m/m semi-rotary mode / 150 m/m rotary mode

Unwinder with Web guide

Six offset units

Six semirotary cassettes, Format length 200 to 400 mm

Six full rotary casettes, Format length 24”

One full- and semirotary hotfoil unit - (with one semi and one full rotary cassettes)

One Full- and semi-rotary embossing unit

One Full- and semi-rotary die-cutting unit

Processing unit with stripping and -, slitting

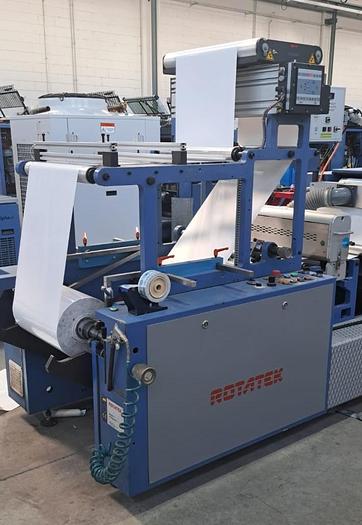

Rewinder

Rail system for the Offset cassettes

Integrated crane for magnetic cylinders

Plate bending device

Printing Substrates: Plastics (PET PVC BOPP) 12 microns

Self-adhesive papers, papers, structured papers 40 – 250 g/m2

Folding carton and aluminium.
