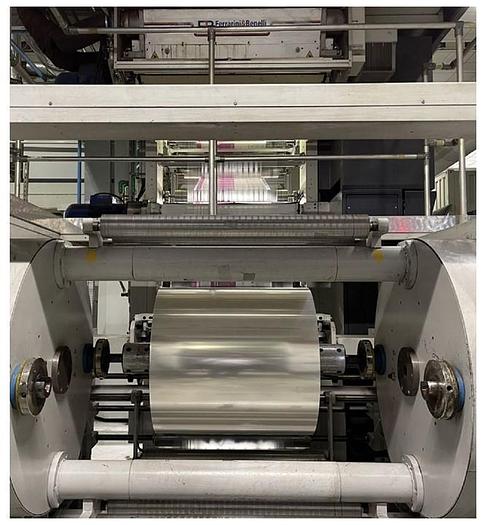

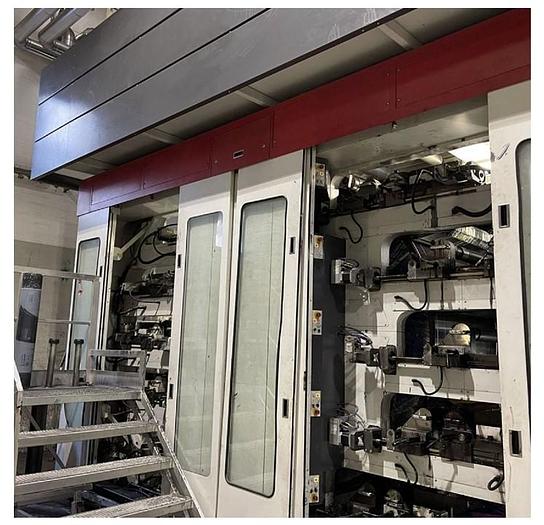

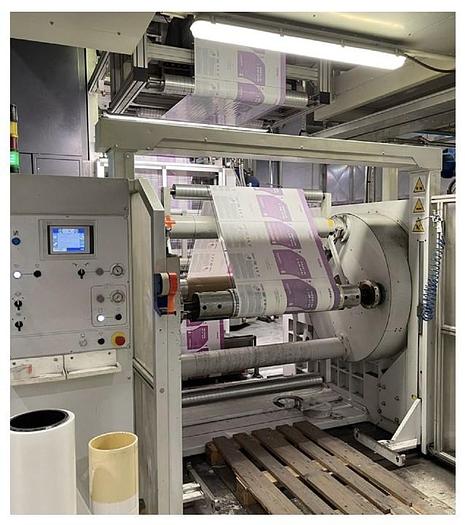

2018 Uteco Crystal Gearless CI Flexo Line

UTECO CRYSTAL GEARLESS CI FLEXO LINE

Number of colours: 10

Print possibilities: 10+0

Fast sleeve change

4 motor per deck CNC position system

Computer supervision

Web width: 1050mm

Print width: 1000mm

Minimum print repeat: 330mm

Maximum print repeat: 750mm

Unwind: turret automatic with roll loading system

Maximum reel diameter unwind: 1000mm

Rewind: turret automatic with roll unloading system

Maximum reel diameter rewind: 1000mm

Drying: 2 zones, 4 fans final tunnel 5mt, thermo oil heat exchangers, automatic air recirculation system with LEL control

Video camera: Grafikontrol double camera with 100% inspection

Corona treatment

Web guides: in and out Fife OPG

Viscosity control: automatic Gama G29

Washing system: automatic

Inking system: closed chamber doctor blades

+ Ceramic anilox sleeves

+ Print sleeves
