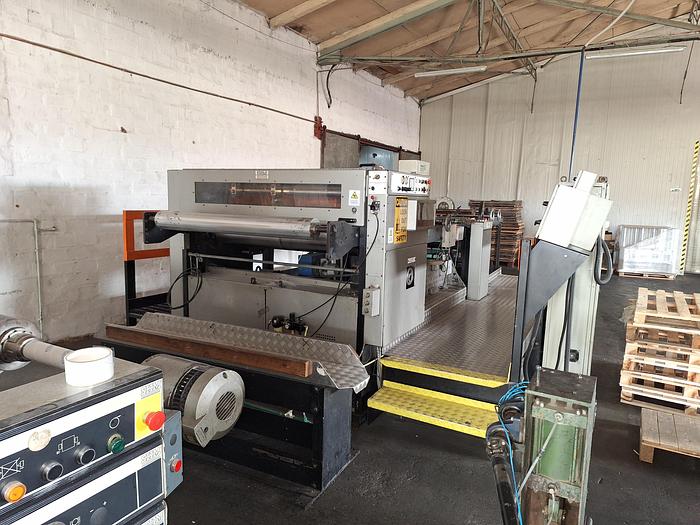

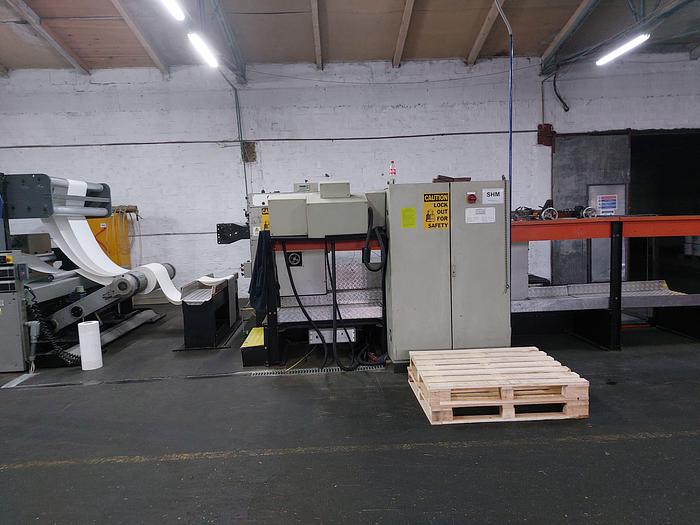

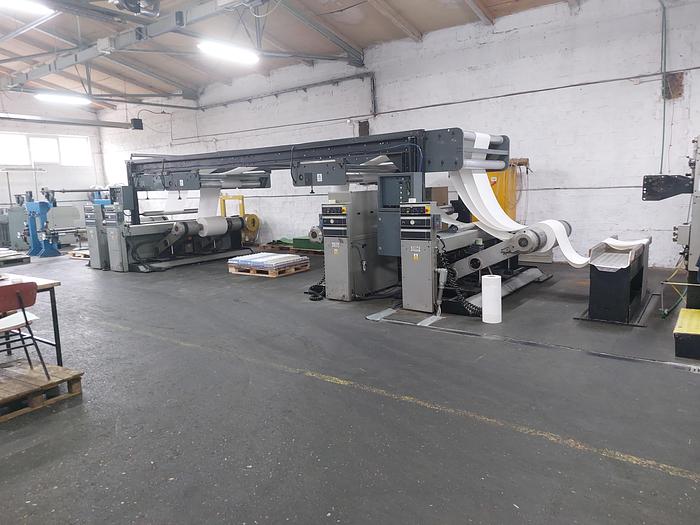

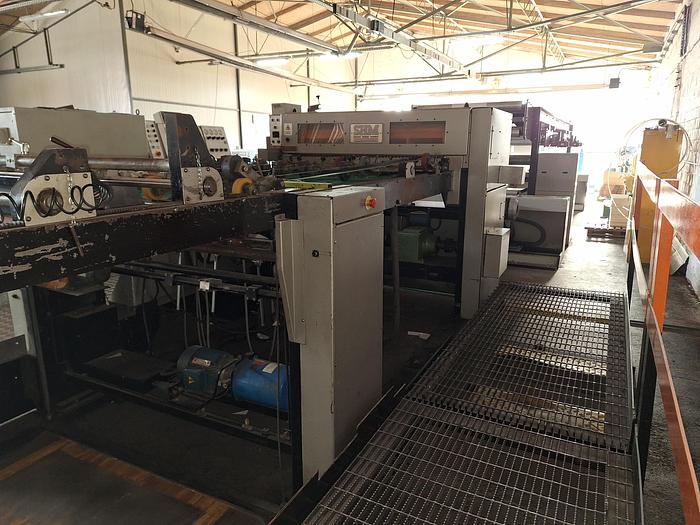

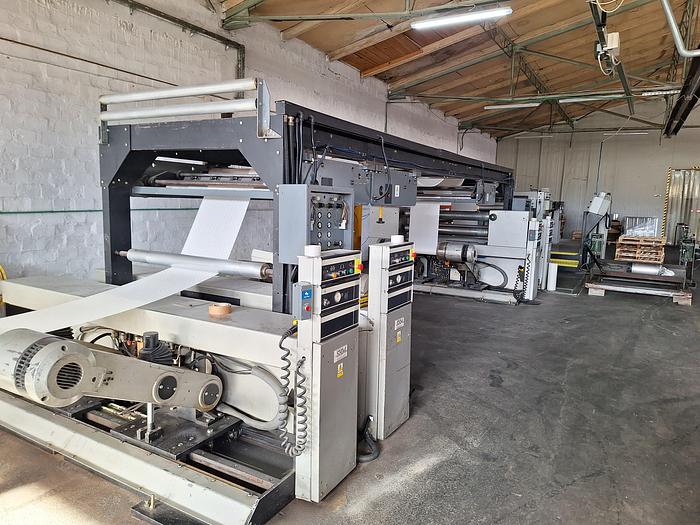

1996 SHM 1400 DK

Maximum roll width:1400mm, 55”

Maximum roll diameter:1275mm, 50”

Cut off length: 1500mm, 59” maximum, 400mm , 15” minimum

Knife load: 600gsm

Running speed: 200m/min, 650ft / min maximum depending on material and sheet length

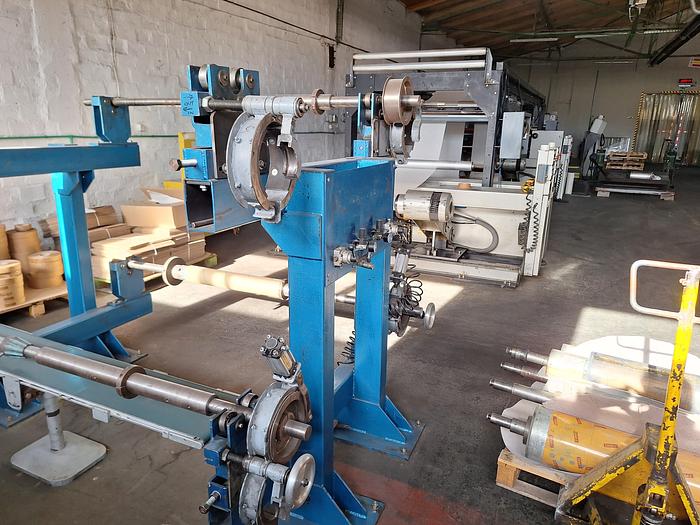

4 x shaftless, floor pickup driven unwinds plus 4 x non-driven unwinds

Pile height: 1300mm, 51”  including pallet

Pile weight: 1500kg, 3,300lb maximum

Electrical supply:  3 phase supply 10KVA loading, 415 V

Air supply: 5.5 bar, 80 psi, consumption 0.085/min, 3cu.ft/min
