2014 Isotex Solvent Waterbased Coating Line

ISOTEX SOLVENT WATER BASED COATING LINE

Working width: 1700mm

Materials: Paper laminates and film

Speed: 140m/min

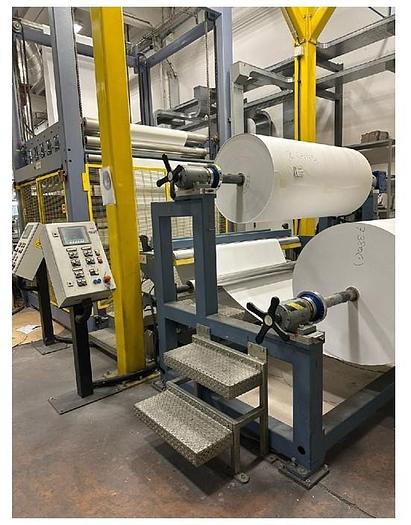

First unwind: 2 shaft unwind with materials storage for non stop splicing

Material accumulation/storage for reel change, 120m material

Rewind: turret with flying slice

Maximum diameter reel rewind: 1000mm

Reverse roll coating unit

Doing roller: 292mm diameter

Coating roller: 292mm diameter

Counter impression roller: 350 diameter

Smoothening colander with: 30kw IR drying

Drying tunnel total length: 15m, 5 hoods of 3m each

Maximum temperature: 250c

Drying zones: x 5 with 5 in blow fans inverter controlled

Exhaust suction 3 fans inverter controlled

Heat source with 5 gas burners

In combination with infra red drying

Installation power approximately: 192kw including IR

Coating thickness gauge, Beta rays source Kr85
