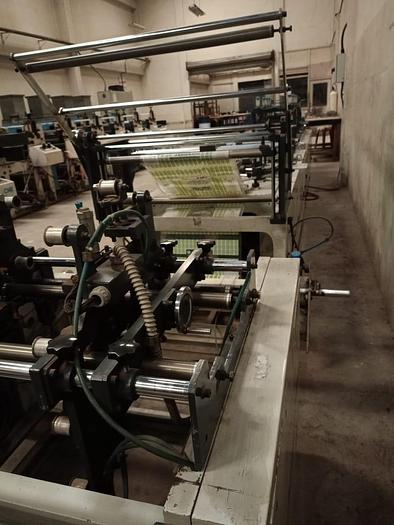

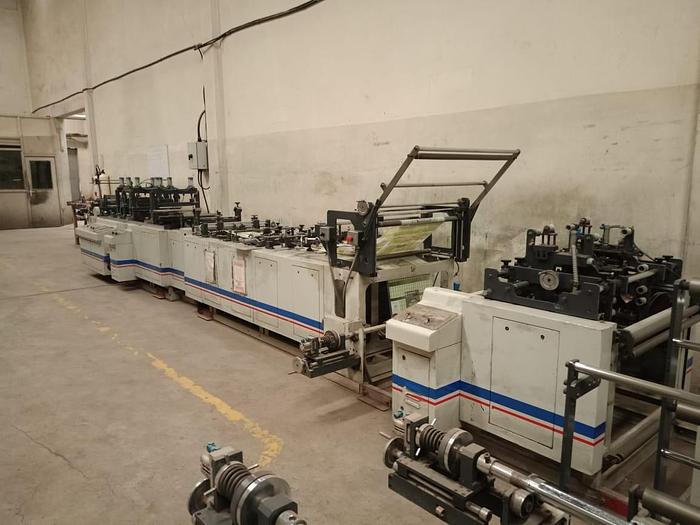

2008 Mamata Vega 350 Servo Vacuum Pouch Bag Machine

MAMATA VEGA 350 SERVO VACCUM POUCH BAG MACHINE

Bag type: Central seal, 3 side seal, Vacuum Pouches for meat & Cheese packs

Bags: up to 10Kg bags

Substrates: Paper, PE, PET, MET, PET, BOPP, MET, BOPP, etc

Auto web allign system

Film index: AC servo motor

Type of Polymers: laminates of polyester

Bags:

Film thickness range: 30-80 micron

Web width range: minimum 150-720mm

Draw length range: 100-500mm

Unwind reel diameter: maximum 500mm

Cycles/min on Center seal/lap seal pouches: 165

Cycles/min on 3 side seal pouches: 120

Electrical power: AC, 3phase, 415 +-6%volt, 50hz

Air consumption: 600 litres/minute

Foot print: length 5200 x width 2000 x height 2000mm

Machine weight approximately: 1.5mt
