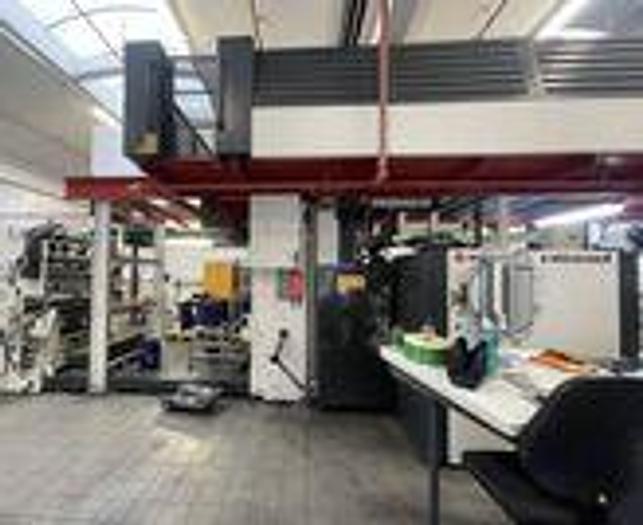

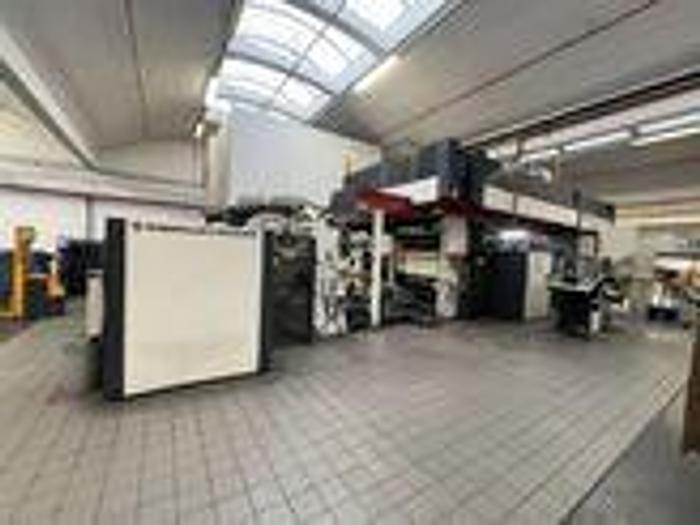

2010 Windmoller & Holscher Miraflex AM8 CI Flexo Line

WINDMOLLER & HOLSCHER MIRAFLEX AM8 CI FLEXO LINE

Number of colours: 8

Print possibilities: 8 + 0

Gearless

Fast sleeve change

4 motor per deck CNC position system

Computer supervision

Web width: 1320mm

Print width: 1270mm

Minimum print repeat: 380mm

Maximum print repeat: 800mm

Unwind: turret automatic with roll loading system

Maximum reel diameter unwind: 1000mm

Rewind: turret automatic with roll unloading system

Maximum reel diameter rewind: 1000mm

Drying: 2 zones, 4 fans, final tunnel, 2 gas burners, auto recirculation system with LEL control

Video camera

Web guides: in and out

Viscosity control

Washing system: automatic

Inking system: closed chamber doctor blades and ceramic anilox rollers

Ink pumps: x 8

Slitting device at rewind with rotary knives

Additional equipment available for additional price:

Polymount plate cleaner

Flexo wash anilox cleaner

Printing sleeves washing machine

Plate Mounter AV Flexologic SAMM 1300

+ Anilox ceramic

+ Print sleeves
