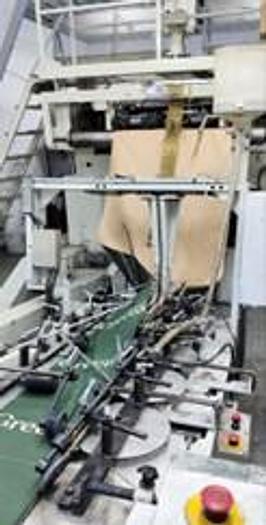

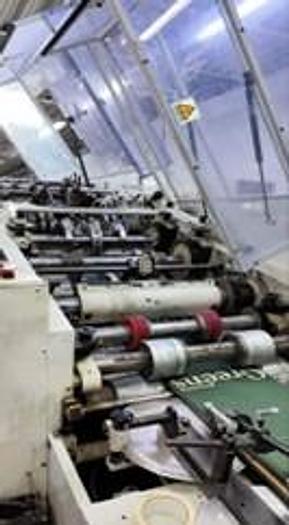

2013 Newlong 148T + 504TH-7

MODEL 148T+504TH

S.O.S. BAG MAKING MACHINE WITH HANDLE MAKING UNIT

RANGE & SPECIFICATIONS

Speed (depending on conditions)

Max. 120 bags/min. with handle : Max. 150 bags/min. without handle

Cutting Length: 400 - 650 mm (400 - 770 mm)

Bag Length: 290 - 580 mm (290 - 700 mm)

Bag Width (TW) : 220 - 540 mm

Bottom Width (BW) : 80 - 250 mm

Paper Width : Max. 1,510 mm

Paper Roll Dia : Max. 1,200 mm ID 76 mm

Applicable Paper Weight : 80 - 140 g/m2

Handle Center Distance (TW+BW) : 320 - 740 mm

Note: Figures in parenthesis show the size range without handle.

HANDLE SPECIFICATIONS

Material of Handle

Twisted Paper Roll

Material Size : 4 - 8 mm

Sealing Method : cold chemical glue

Handle Patch Size:-

Paper Length : 190,5 mm

Paper Width : 100 mm (fixed)

This paper is slit into 2 line of each 50 mm width

Handle Height: 170mm

Handle Patch Width (50 mm) 170 mm

Paper Roll Dia : Max.1,000 mm (ID 76 mm)

Paper Roll Stand : 4 stands

Paper Weight : 100 - 120 g/m~

STANDARD EQUIPMENT

Paper Roll Stand (air cylinder type)

Handle Making Unit

Handle Inserting Unit

Forming Unit

Main Body

Delivery Unit

Photo-Cell Device

DETAILS

1. PAPER ROLL STAND

Air Cylinder type lifting (up down) device; Paper roll horizontal adjustment by motor; Alarm for small quantity of paper roll (photo cell); Paper roll shaft by stoppers for 3 inches ID

2. HANDLE MAKING & INSERTING UNIT

Cold glue pasting device; Web Guide (E.P.C.) for handle patch paper; Auxiliary Web Draw Unit; Guide Rolls

3.FORMING UNIT

Complete with forming plates and gusset adjusting rolls. Bag width and Gusset width are determined by this unit. Bag width can be changed by replacing of the Forming Plate.

4.MAIN BODY

Sandblast roll; Straight cutter unit; Bag feeding rolls; Creasing rolls; Bottom opening cylinder; Bottom size circulation for dry prevention; Bottom gripping cylinder; Bottom forming section; Pripeloctor device (El Timer system); Grippers horizontal adjustment by motor

5. DELIVERY UNIT

Vertical type; Press rollers; Electrical counter; Digital speed meter

6. OTHERS

11 KW main motor (Inverter); Electrical wiring; Control box; Standard tools; Standard parts
