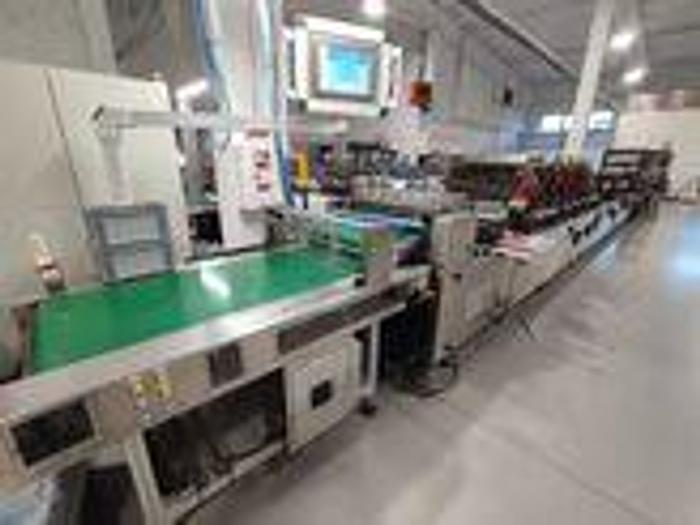

2019 Shanghai Zhoutai AMD600HLMSC.200P Pouch and Vacuum Bag Making Line

SHANGHAI ZHOUTAI AMD600HLMSC 200P POUCH AND VACUUM BAG MAKING LINE

Sealing/bags: multiple

Type of bags: 3 side seal

Inserted bottom gusset standup pouch

Folded bottom gusset

With optional zipper pouch making

Bag length: maximum 600mm

Bag width: maximum 250mm

Unwind: shafted body film, maximum 1200mm, 47.2in, auto lifting maximum diameter of the roll 800mm

Cycle/min: 3 side seal 15-220cuts/min, standup pouch inserted 15-200cuts/min

Height of maximum pouch TD: 600mm, 23.6in

Width of maximum pouch MD: 250mm, 9.8in

3 side seal: height 78-600mm, 3.1-23.6in

Standup zipper pouch: fold bottom or insert bottom

Height: 80-550mm, 3.14-21.6in

Width: 80-250mm, 3.14-9.8in

2 up sup with zipper: insert bottom by second web

Height: 80-275mm, 3.14-10.8in

Width: 80-250mm, 3.14-9.8in

Distance of 2 zipper of 2 up: = 70mm, 2.75in

Width can go for skip knife

Bag width: 50-250mm, 1.96-9.8in, upto 6 skips

Depth of gusset: bottom fold 20mm-65mm, 0.78in-22.55in, insert bottom 20mm-70mm, 0.78in-2.75in

Zipper sealing: x 2 sets, length 640mm, width 50mm

Zipper cooling: x 2 sets, length 510mm, width 50mm

Longitude sealing: x 4 sets, length 640mm, width 60mm

Longitude cooling: x 4 sets, length 510mm, width 60mm

Cross sealing: x 5 sets, length 640mm, width 90mm

Cross cooling: x 2 sets, length 640mm, width 90mm

Ultrasonic zipper seal: x 1 set
