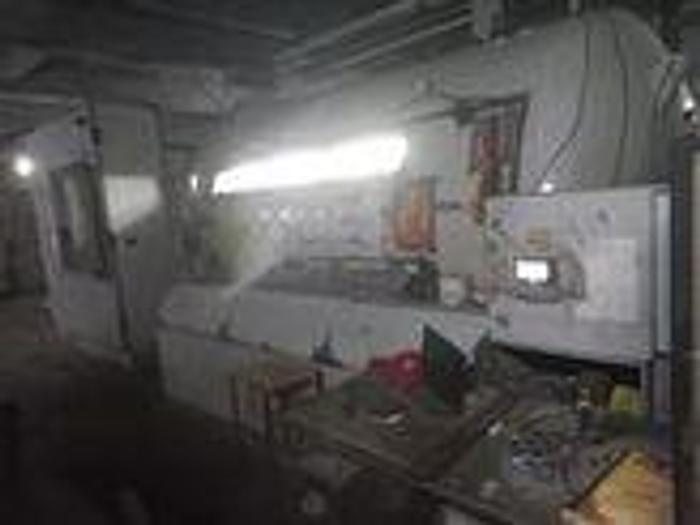

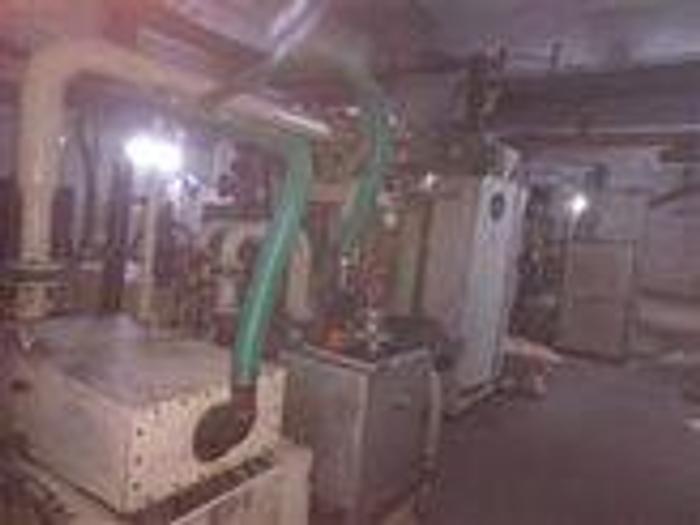

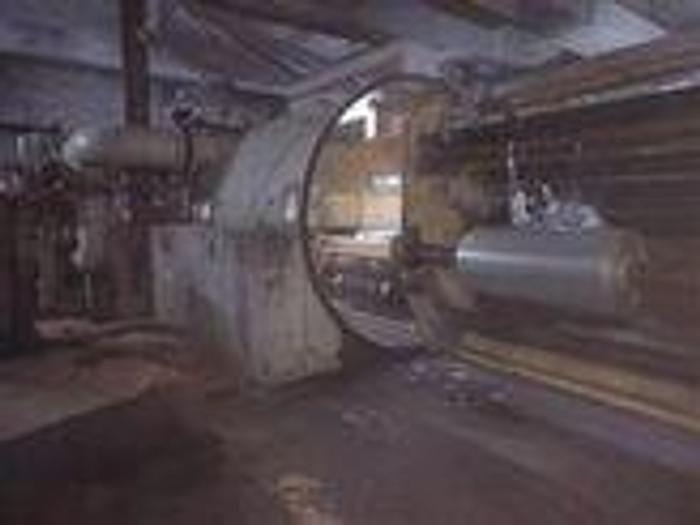

2005 General Vacuum Equipment Metallizer Line

GENERAL VACUUM EQUIPMENT METALLIZER

Working width: 2050mm

Materials: BOPP, 8 – 80 micron, PET 9 to 50 micron. CPP 20 – 50 micron, Paper 40 – 80gsm

Maximum diameter reel unwind: 1000mm

Maximum diameter reel rewind: 1000mm

Evapouration boots: 150mm x 30mm x 10mm

Polycold: x 1 PFC1101 HC @ 200,000 ltr/sec

Pumping systems

Quantity and capacity

Evaporation zone

Diffusion pumps: Varian x 2 @ 50,000 ltr/sec

Rotary pumps: Kinney x 1 @ 505cu meter/hr

Boosters pumps: Arzon @ 3900cu meter/hr

Polycold: x 1 PFC 1101 HC @ 200,000 ltr/sec

Winding zone

Booster pump: x 1 Arzon @ 3900cu meter/hr, x 2 Arzon @ 13000cu meter/hr

Rotary pump: x 2 Kinney @ 505cu meter/hr

Polycold: x 1 PFC1101 HC @ 200,000ltr/sec
