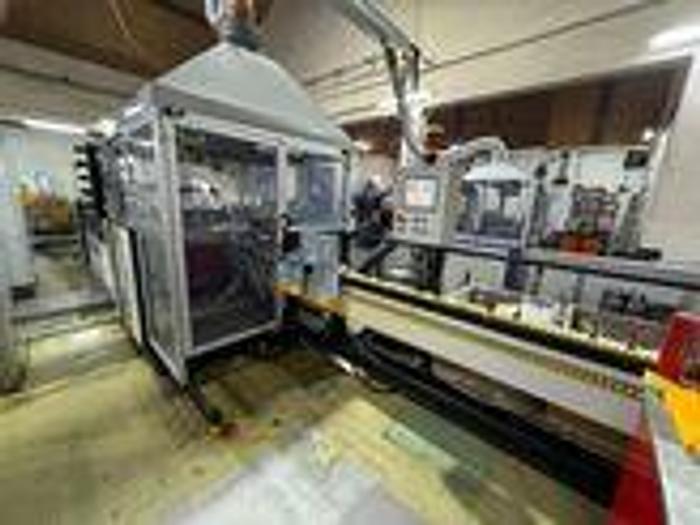

2012 Scae Dimatic Silver 471/110 Film Bag Making Line

SCAE DIMATIC SILVER 471/110 FILM BAG MAKING LINE

Sealing/bags: side weld, wicketer

Delivery: wicketers

Working width: 1500mm

Bag length: maximum 620mm

Bag width: maximum 1100mm

Double motorized unwind: 1500mm wide

Pneumatic dancer: x 2

Edge guide with ultrasonic sensor: x 2

Air shaft: 3" x 2

Folding triangle: 1600/800mm

Bottom gusset maximum gusset deep: 80mm

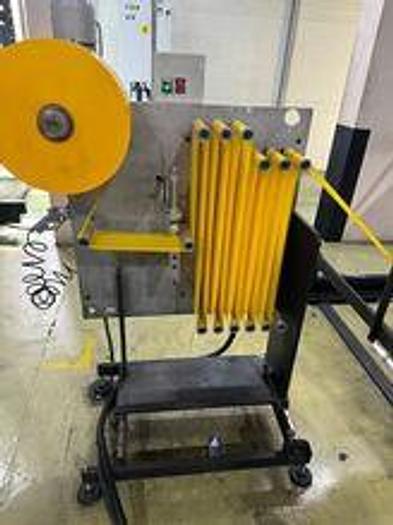

Motorized unwind for the handle reinforce

Handle to be placed inside the folded bag W5 or external W6

Hot air longitudinal sealing

Nip roller/pneumatic dancer and auxiliary servo draw roller section

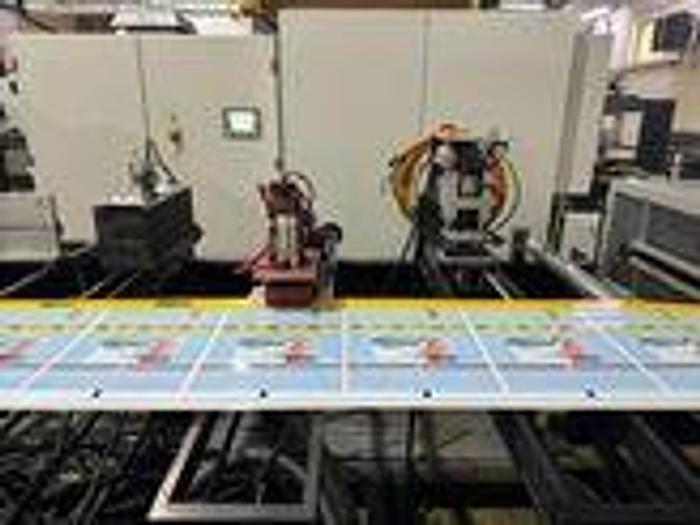

Ventilation holes x 2 with Y and half moon punch

Pneumatic handle hole punch with teeth cut for handle 90 x 20mm with scrap removal

Scrap removal ventilator with plastic bag to collect the scraps

Pneumatic easy open punch with two shape of punching: 240 x 100mm R55 and 265 x 90mm R55 and other size and form available on request but not supplied with the machine and can be sold apart, + hole of 20mm diameter for easy opening

Wicket hole punch diameter 15mm and slit cut for anti shock with ultrasonic edge guide

Side seal bar radius 1.2

Side seal radius: 90°

Silicon roller for side seal contrast

Servo driven wicket stacking chain
